Low Voltage Switchgear

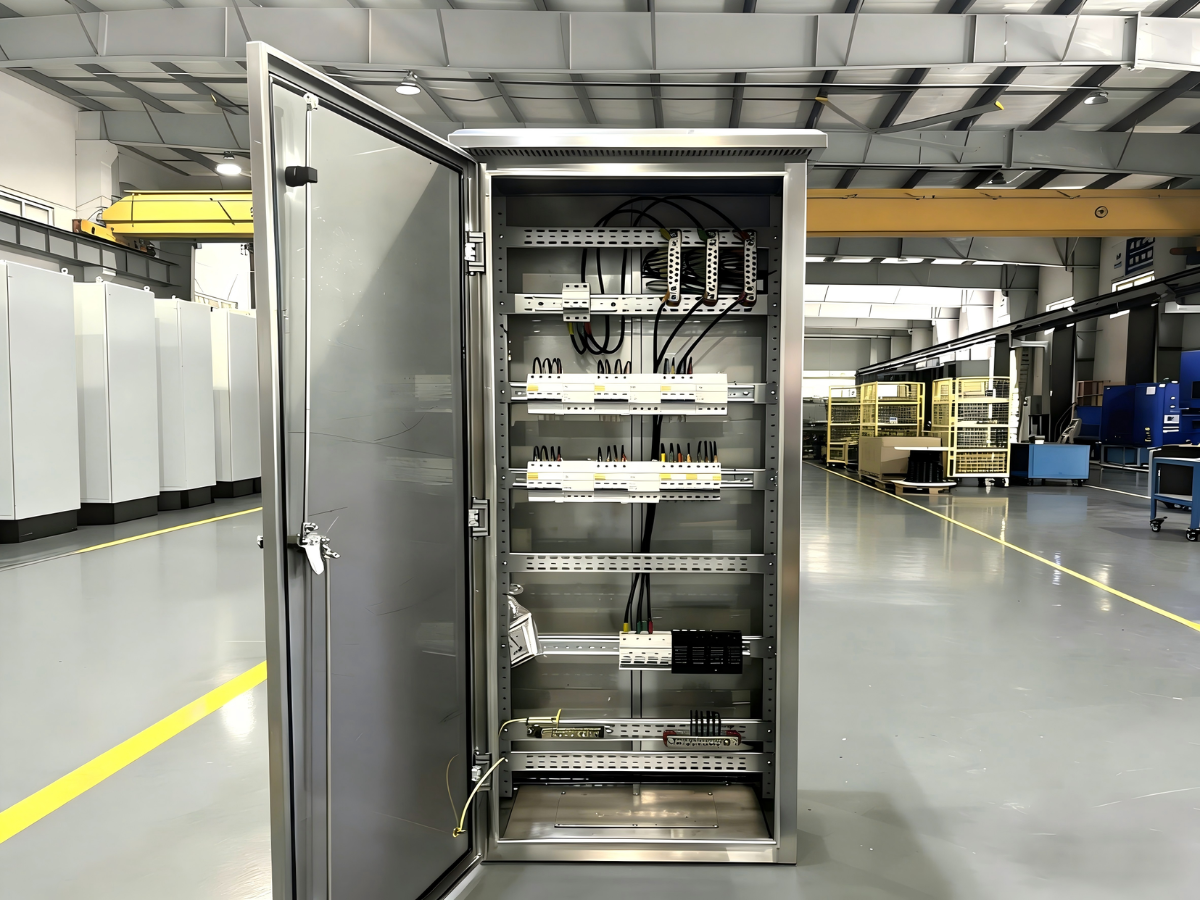

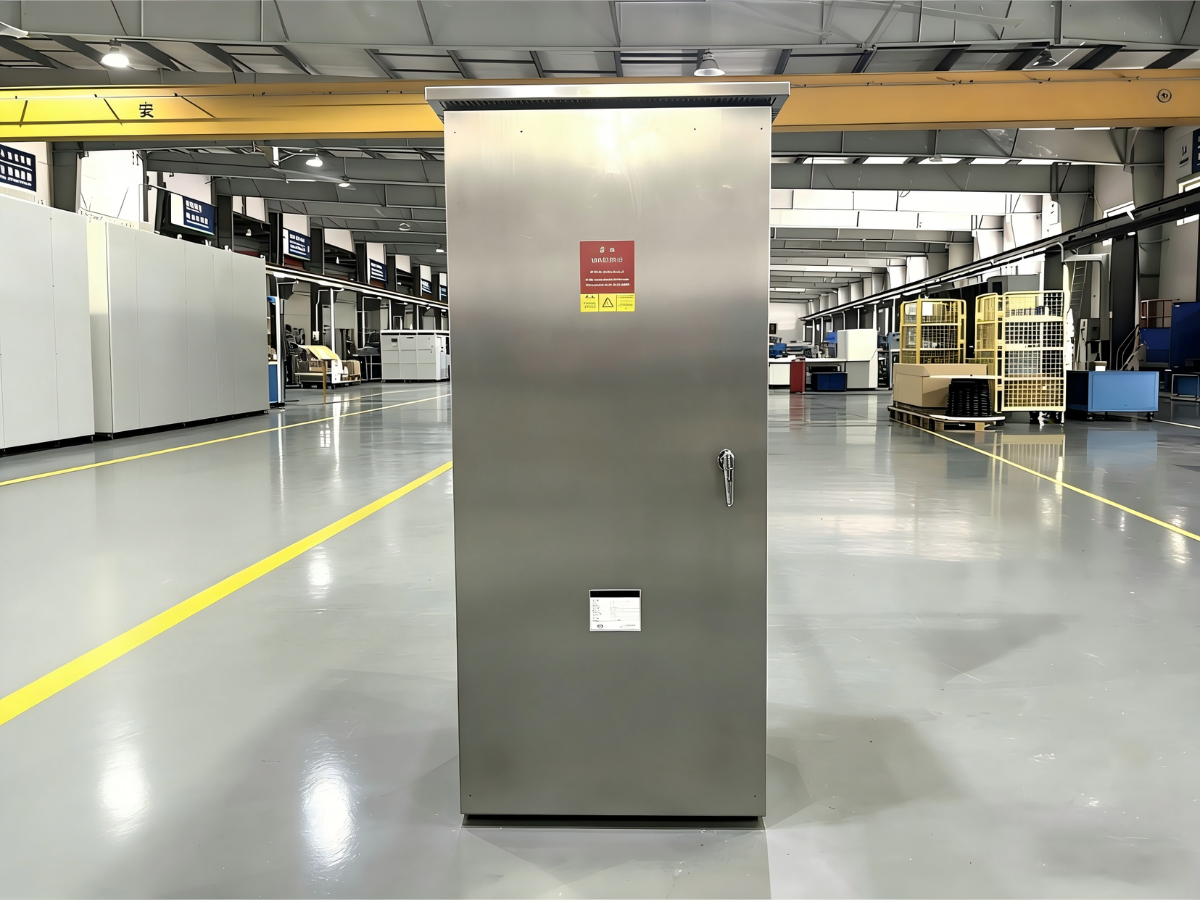

XF Low Voltage Switchgear
Product Overview
Suitable for 50 Hz AC low-voltage power and lighting systems with rated voltage 400 V and rated current 630 A (three-phase four-wire or five-wire configurations). It provides comprehensive protection functions including surge protection, earth leakage protection, short-circuit protection, overload protection, over-voltage/under-voltage protection, and automatic transfer switching (ATS).
Standards
- GB/T 7251.2-2023 Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies
- GB/T 14048 Low-voltage switchgear and controlgear (series)
Technical Parameters
| Item | Value |
|---|---|
| Rated operating voltage | Main circuit ≤ AC400V; auxiliary circuit AC220V, AC380V, DC110V, DC220V, DC240V |
| Rated insulation voltage | Main circuit AC690V |
| Rated impulse withstand voltage (1.2/50μs) | Main circuit 6kV |
| Rated operating current | Main circuit ≤630A |
| Rated frequency | 50Hz |
| Degree of protection | IP30, IP31, IP32, IP40, IP41, IP42, IP43, IP54, IP65 |
