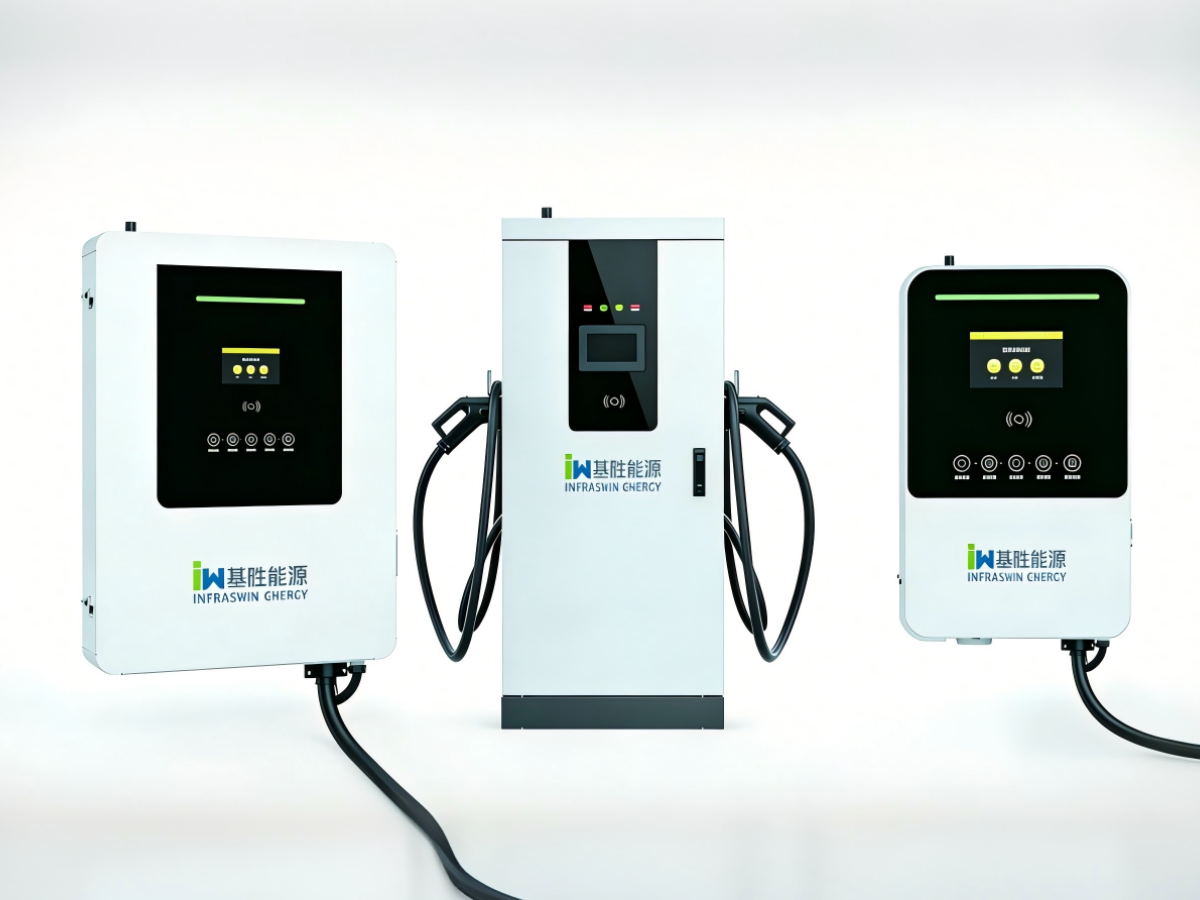

Smart EV Charger

New Energy & AI Smart Devices

Smart EV Charger

Product Overview

The Infraswin smart EV charger is designed for electric vehicle charging applications, supporting both DC fast charging and AC charging with power ratings from 7 kW to 160 kW. It features integrated 4G wireless communication and built-in billing functionality for convenient charge management.

Standards

  • NB/T 33008.1-2018 Test specification for EV charging equipment - Part 1: Off-board charger
  • NB/T 33001-2018 Technical conditions for off-board conductive EV charger
  • Q/GDW 10591-2018 Test specification for off-board EV charger
  • Q/GDW 10233-2018 General requirements for off-board EV charger
  • Q/CSG 1211013-2016 Southern Power Grid specification for reactive power compensation and voltage control of PV power stations

Technical Parameters

Name Parameters
Rated Output Power 7kW 30kW 40kW 60kW 80kW 120kW 160kW
Rated Input Voltage220Vac±20%380Vac±20%
Cable Length5/7 m (customizable)
Output Voltage220Vac±20%150~1000Vdc±0.5%50~1000Vdc50~750Vdc50~1000Vdc50~750Vdc50~1000Vdc
Max Output Current32A100A125A200A200A250A250A
Max Charging Power7kW30kW40kW60kW80kW90kW90kW
Standby Power Consumption<3W/
Operating Temperature-20℃~+55℃-20℃~+55℃-20℃~+65℃, derating above 50℃
Operating Humidity≤95%RH, non-condensing≤90%RH, non-condensing5%~95%RH, non-condensing
Operating Altitude<2000m≤2000m≤2000m, power derating above 2000m
Storage Temperature-40℃~+85℃-20℃~+55℃
Protection RatingIP55IP54
Start MethodAPP, mini program, card swipeAPP, mini program, card swipe, VIN code
CommunicationEthernet, 4G
Product Dimensions370*260*105mm680*400*187mm750*1600*456mm
Product Weight<5kg<30kg<80kg
