Energy Router

Product Overview

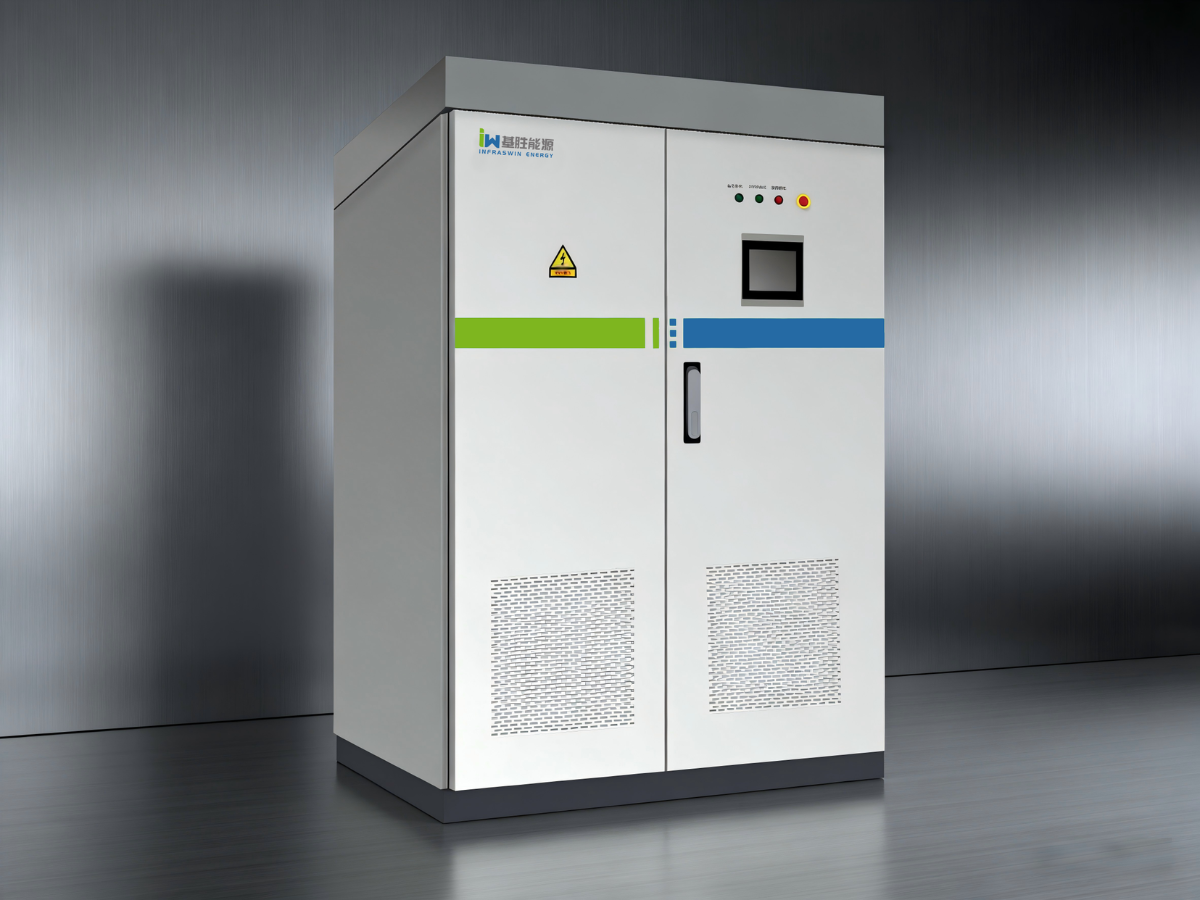

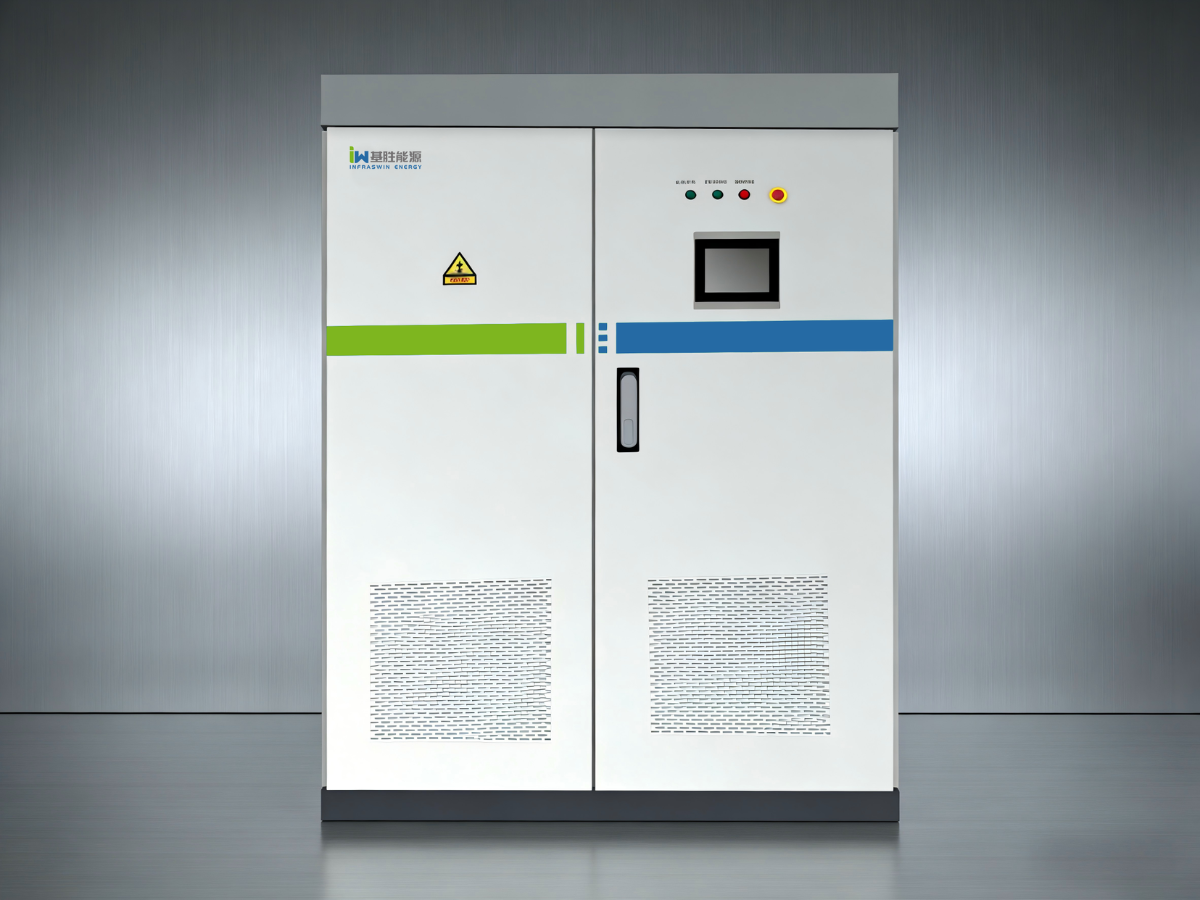

The iW-DCPR energy router is built on advanced PV-storage-DC-flex technology featuring a multi-port converter architecture. It connects renewable generation, energy storage, loads, and the power grid into an intelligent network. Serving as the central energy management hub, it integrates energy dispatch, power quality management, information exchange, and transaction metering functions.

Core Functions

PV-storage coordination for higher utilization: integrated MPPT and bidirectional storage conversion for real-time power matching and intelligent charge/discharge.
Flexible DC and simplified distribution: DC bus architecture with one-stage AC/DC conversion, compatible with AC/DC loads such as chargers and LED lighting.
Dual-mode operation for uninterrupted power: seamless grid/off-grid switching with built-in online EPS to keep critical loads powered during grid faults.
Intelligent routing and optimal dispatch: multi-objective optimization for efficient, stable system-wide energy management.

Product Advantages

Technology leadership: deep PV-storage-DC integration, 6%~8% lower internal losses, up to 98.5% system efficiency.
Cost-effective: PV-storage power compensation reduces grid capacity demand by 30%; standardized modules reduce cost by 30% and shorten deployment by 60%.
Stable and reliable: full digital protection, IP65, -20℃~+55℃operation; key components life of 15 years, MTBF ≥ 50,000 hours.
Smart O&M: HMI touchscreen visualization, built-in PRCC controller, seamless access to Infraswin Cloud for remote O&M.

Core Value

Economics: lower costs, shorter cycles, reduced grid capacity, better ROI
Reliability: long life, high stability, strong protection for continuous operation
Green: PV utilization ≥ 85%, annual carbon reduction around 45% to support dual-carbon goals

Application Scenarios

Near-zero-carbon buildings: PV + storage + charging integration for self-use microgrids.
Smart distribution areas: mutual load balancing, peak-valley difference reduced by over 30%.
Virtual power plants: multi-protocol aggregation with dispatch response error < 5%.
